SHUO YANMASTERBATCHDiscuss Your Part

CAPABILITIES & QUALITY

The second batch is the one that matters.

Anyone can hit a color once. What procurement needs is certainty, not surprises — the same result on batch two, batch twenty, and next year's order.

~3,000 m²Masterbatch factory
4High-capacity production lines
3,800 MTAnnual design capacity
1,000 m²Warehouse

MEASURE · COLOR MEASUREMENT

Measured against the standard — not against memory.

X-Rite spectrophotometer and computer color-matching workstation
01

High-precision spectrophotometer

Formulation built and checked against measured data, with ΔE ≤ 1 control under agreed measurement conditions.

Front view of a color assessment cabinet with controlled standard light sources
02

Controlled visual assessment

Standard light sources for the appearance checks an instrument cannot make.

TP500 injection molding machine used for in-house sample plaques
03

In-house sample molding

Test plaques molded on site, so the color is judged as a part — not as powder.

PROVE · QUALITY CONTROL

The recipe is only half of a repeatable batch.

QC 01

Incoming

Raw materials verified before production.

QC 02

In-process

Process parameters and dispersion monitored.

QC 03

Final release

Batch evaluated, record issued, sample kept.

RAW MATERIAL SOURCING

BASFCLARIANTand other established global suppliers

WHAT ARRIVES WITH YOUR ORDER

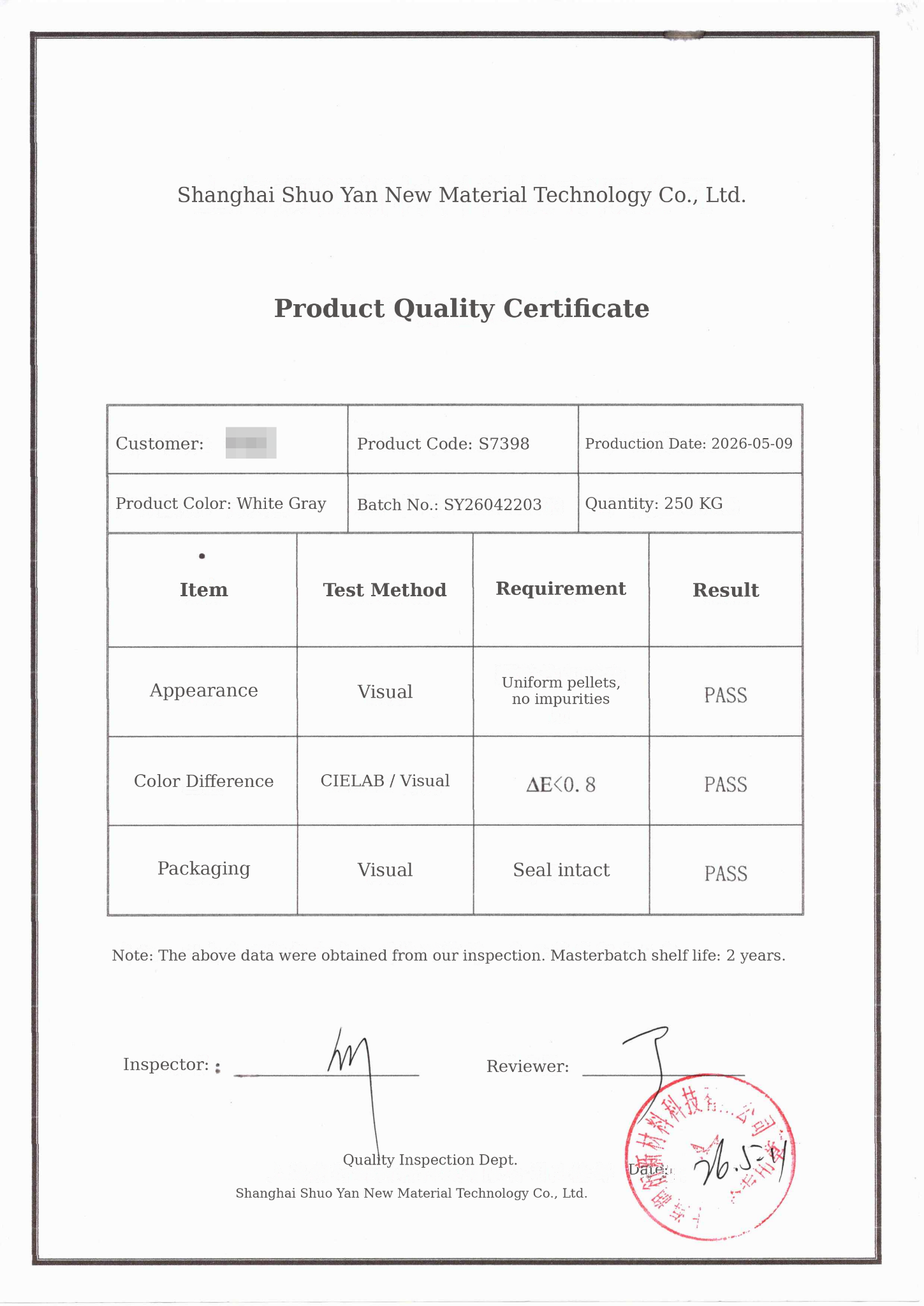

01Shuoyan product quality certificate with batch inspection results

Batch quality certificate

Batch number, production date and quantity, with each item checked against the agreed requirement.

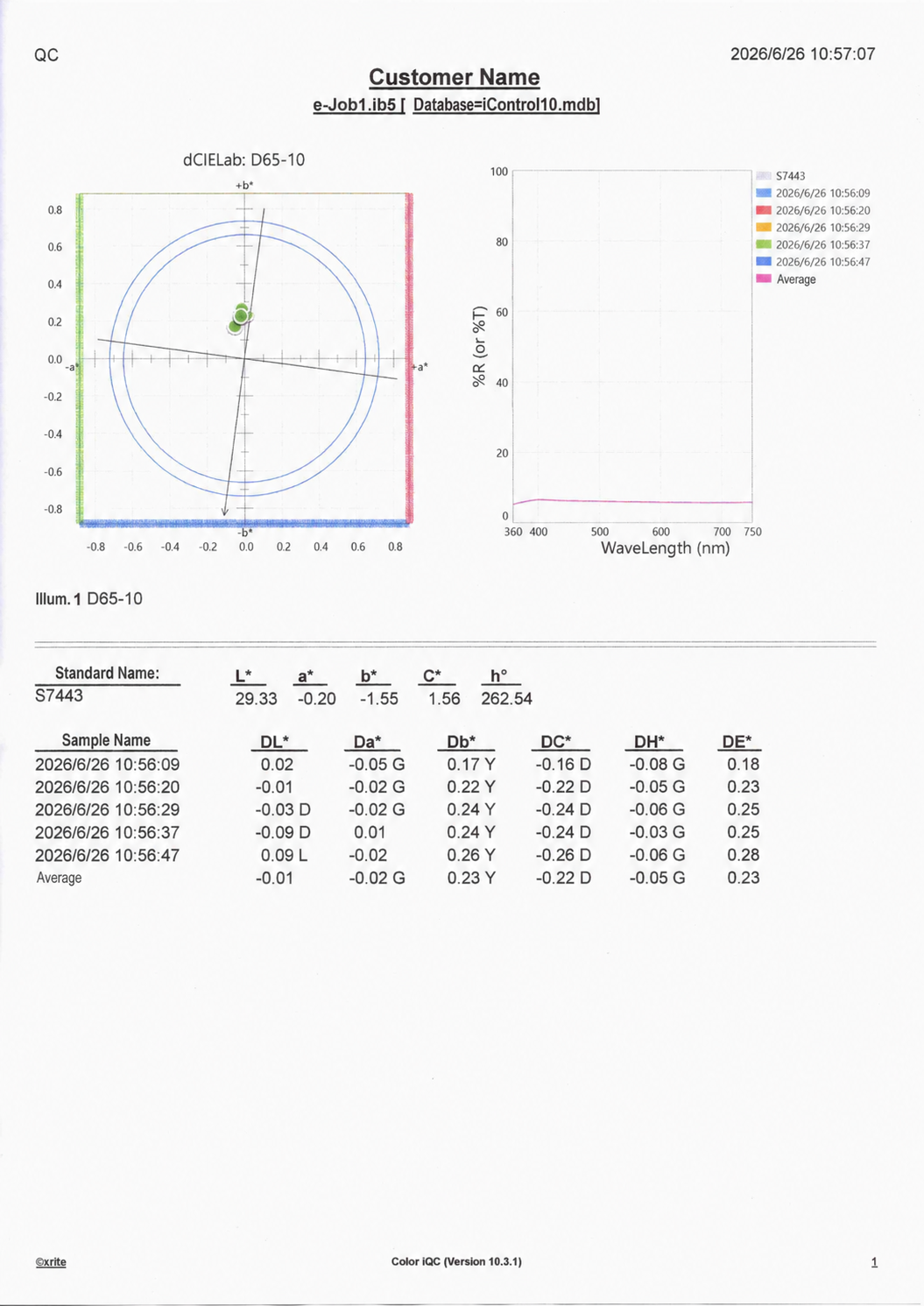

02Shuoyan spectrophotometer report with CIELAB measurements

Spectrophotometer report

Measured against the approved standard, with the full CIELAB record and the deviation on every reading.

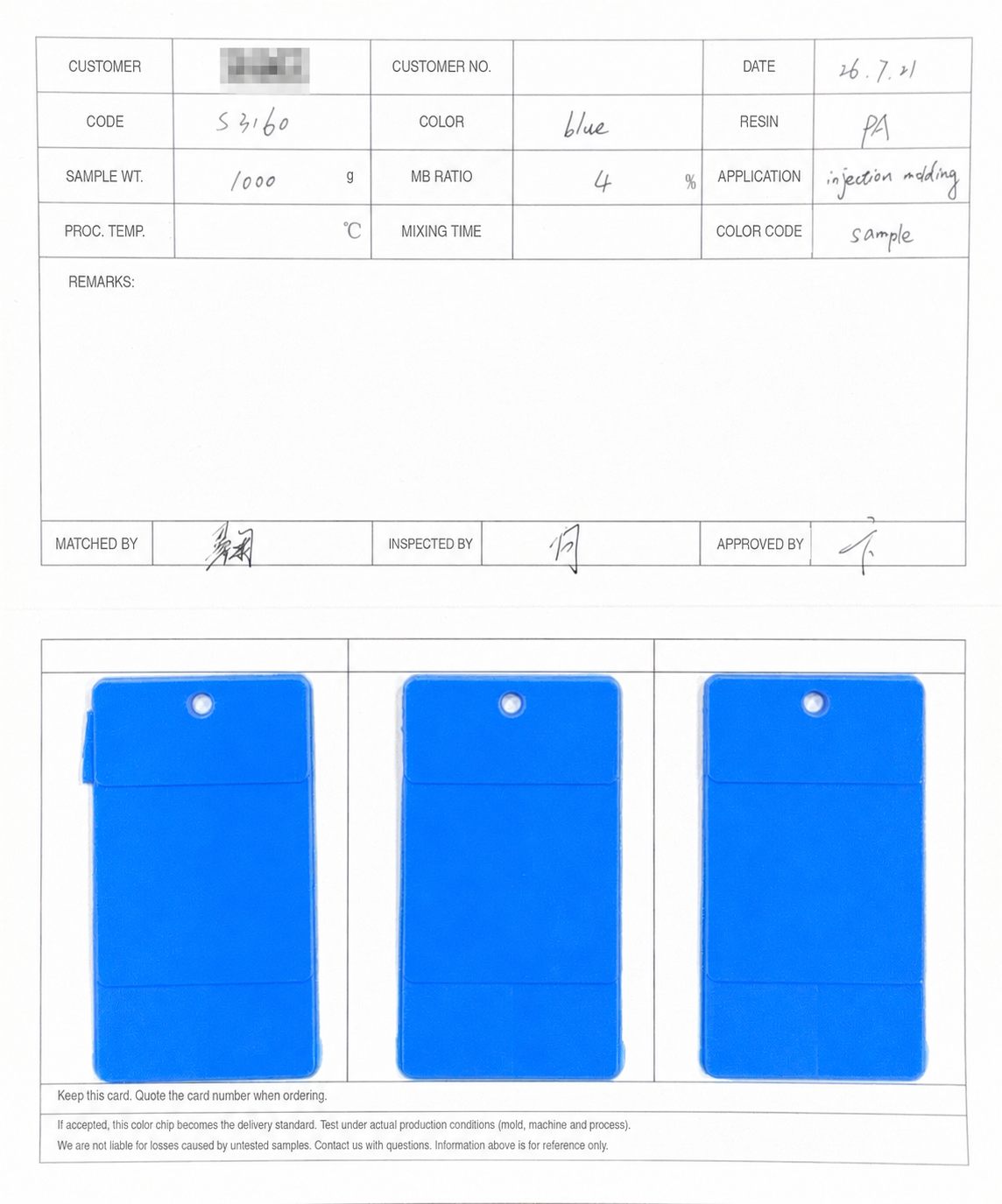

03Signed color approval card with three retained blue sample plaques

Approval card & retained sample

The signed-off chip, with resin, let-down ratio and application recorded — and pellets kept from that batch.

If a color question comes up months later, we can measure the original retained plaque — not re-make one.

CONTINUE · SUPPLY CONTINUITY

Stock and capacity, so your line doesn't wait.

Automated Shuoyan masterbatch extrusion and pelletizing line
AUTOMATED EXTRUSION & PELLETIZING

CAPACITY HEADROOM

300kg/h per line

A 500 kg repeat order is under two hours of line time — it doesn't queue behind a development run.

4high-capacity lines

3,800MT annual design capacity

Shuoyan raw-material warehouse with pallet racks and forklift
FIFO WAREHOUSE

MATERIAL ON HAND

1,000m² warehouse

Pigments and base resins for recurring formulations are held in stock — a repeat order starts from inventory, not procurement.

FIFO HANDLINGBATCH IDTRACEABILITY

QUALITY SYSTEM & COMPLIANCE DOCUMENTATION

Evidence you can inspect — not a badge you have to trust.

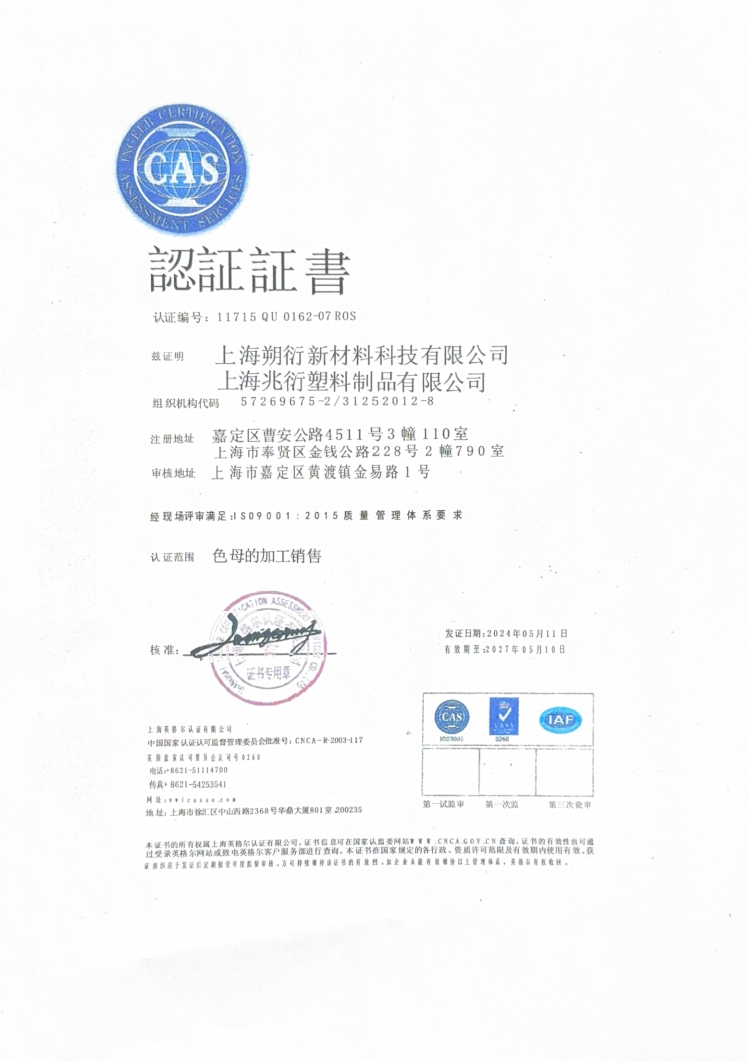

ISO 9001 covers the quality management system. REACH and RoHS reports relate to the specific sample identified in each document. Click any original document to inspect it at full size.

PRODUCT TEST REPORTCTI REACH SVHC test report cover for S7360 black masterbatch in PA 1012

CTI Testing Report

REACH Compliance

SVHC screening under Regulation (EC) No 1907/2006 (REACH) for the identified S7360 / PA 1012 black masterbatch sample.

Report
A2250985499103001E
Report date
9 Jan 2026

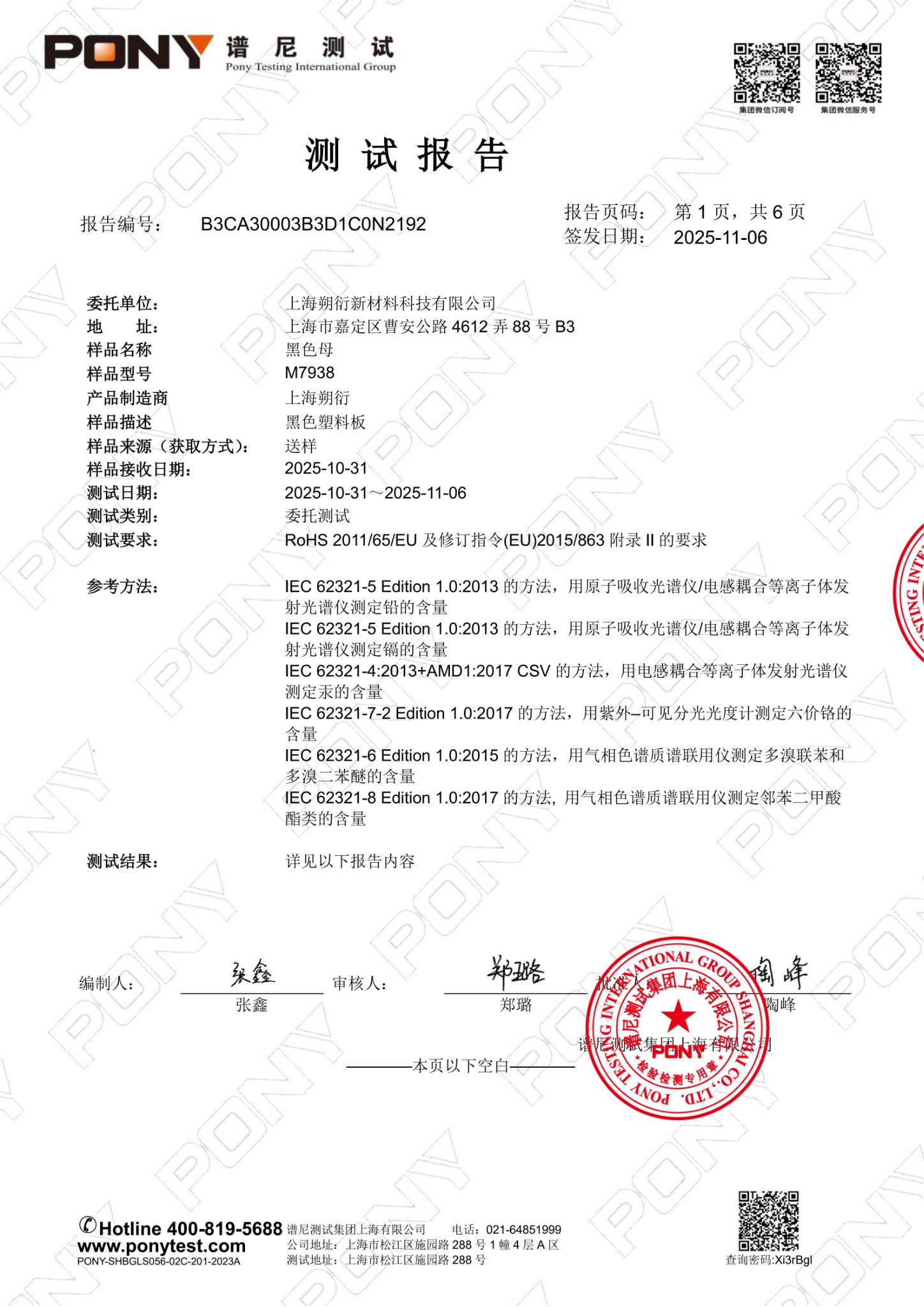

PRODUCT TEST REPORTPONY RoHS test report cover for M7938 black plastic plaque

PONY Testing Report

RoHS Compliance

Restricted-substance testing for the identified M7938 black plastic plaque sample.

Report
B3CA30003B3D1C0N2192
Issue date
6 Nov 2025

BEFORE YOU QUALIFY A NEW SUPPLIER

Ask us for the batch report first.

Send your Pantone or RAL code, or a physical sample. We'll start with a free sample development — and you'll see the documentation that comes with it.
